nextcube Part 3 - Next Users Guide

Intro

In this third installment we’ll do some more NeXT hacking with our nextcube setup and make it more livable.

• In Part 1, we got OpenStep installed and booting cleanly on VirtualBox.

• In Part 2, we configured the Unix and network environments, installed development tools, and added some Unix ports.

• The complete OVA Appliance build published on Archive.org is available if you want to hop right in.

Telnet Refresher

Before SSH and encryption became standard security practices, Telnet was the default way to access remote systems. It uses plain TCP connections and transmits everything — including usernames and passwords — in plaintext. Despite that (or because of it), it was widely used for administration, file transfers, and troubleshooting and testing network services.

At its simplest, Telnet connects to a host and port number as a generic TCP client:

telnet host-or-ip [port-number]

Examples:

telnet nextcube
telnet nextcube 25
telnet 127.0.0.1 9

Yes, you can telnet into 127.0.0.1 or localhost as well as your own IP. This works because the inetd super-server automatically starts telnetd at boot and binds to all available interfaces. The configuration line that enables it is found in /etc/inetd.conf:

telnet  stream  tcp     nowait  root    /usr/etc/telnetd        telnetd

The actual telnetd binary lives in /usr/etc, and is launched by inetd whenever a connection request comes in on TCP port 23.

Telnet’s simplicity makes it an excellent tool for exploring how old network services work. You can use it to:

• Log in to the OpenStep system from another host.
• Connect to local ports for debugging or service checks (telnet localhost 80).
• Interact with simple text-based protocols such as SMTP (telnet host 25), POP3 (telnet host 110), or even the built-in services like finger, daytime, or echo.

Because Telnet sends everything unencrypted, you can easily visualize what’s happening with a packet capture tool like tshark or Wireshark. A short capture of a login attempt clearly shows the username and password as ASCII text — a powerful reminder of why SSH replaced it.

sudo tcpdump -i eth0 -n -s 0 -w telnet_nextcube.pcap host 192.168.1.50 and port 23

┌──[ grumble@shinobi ]:~
└─$ tshark -r telnet_nextcube.pcap -Y "telnet" -T fields -e frame.number -e telnet.data
4
6
8
9
11
12
14
15
16
17
18
19
20
21
22
23      \r\n,\r\n,NeXT Mach (nextcube) (ttyp1)\r\n,\r,\r\n,\r
24
25      login:
27      me\r\n
28
30
31      Password:
34      password\r\n
35      \r\n
37
39
40      Last login: Thu Nov 13 15:35:16 from 192.168.1.51\r\n
42      \r\n
44      \tThe Priest's grey nimbus in a niche where he dressed discreetly.\r\n
46      I will not sleep here tonight. Home also I cannot go.\r\n,\tA voice, sweetened and sustained, called to him from the sea.\r\n,Turning the curve he waved his hand.  A sleek brown head, a seal's, far\r\n,out on the water, round.  Usurper.\r\n,\t\t-- James Joyce, "Ulysses"\r\n,\r\n
48      ����
50      ��
51      [ me@nextcube ]:~ $
53

If you want to know more, you can take a look at the following:

Working with Files

Next up, let’s explore how to work with files on nextcube. Since we don’t have the benefit of VirtualBox Shared Folders, we’ll start by looking at ftp.

FTP refresher

OpenSTEP runs ftpd out of the box thanks to this line in /etc/inetd.conf

ftp     stream  tcp     nowait  root    /usr/etc/ftpd           ftpd

That makes it easy to transfer files between your VirtualBox host and the nextcube guest. Again I would suggest a nice modern ftp client like FileZilla.

You can connect to another host directly from OpenStep using the BSD client:

/usr/ucb/ftp hostname

Remote operations

• open host [port] — connect to a remote FTP server
• user name [password] — authenticate manually
• cd dirname — change remote directory
• cdup — go up one directory
• pwd — print current remote directory
• ls [dir] — list files on the remote side
• dir [dir] — long listing (like ls -l)
• get remote [local] — download a file
• put local [remote] — upload a file
• mget pattern — download multiple files (with prompt off)
• mput pattern — upload multiple files
• delete file — remove a file on the remote system
• rmdir dirname — remove a directory
• mkdir dirname — create a directory
• rename old new — rename a remote file
• status — show current connection and mode
• close or bye — end the session

Local operations

• lcd dirname — change local working directory
• lpwd — print local working directory
• !command — run a shell command locally (e.g. !ls, !cat file)
• ! — open an interactive shell temporarily
• ls with no ! — still shows remote files; prefix with ! for local

Transfer mode

• ascii — convert text line endings; use only for .txt or config files
• binary — raw byte transfer; always use for .app, .tar, .gz, .iso, etc.

To switch:

ftp> binary
ftp> get archive.tar.gz

Example: Fetching the FTP Specification (RFC 959)

You can use OpenStep’s native /usr/ucb/ftp client to retrieve files directly from ftp servers like RFC Editor FTP archive.

Lets fetch RFC 959, the original File Transfer Protocol specification so we have a local copy:

[ me@nextcube ]:~ $ ftp ftp.rfc-editor.org
Connected to rsync.rfc-editor.org.
220 "FTP Server Ready"
Name (ftp.rfc-editor.org:me): anonymous
331 Please specify the password.
Password:
230 Login successful.
ftp> cd in-notes
250 Directory successfully changed.
ftp> get rfc959.txt
200 PORT command successful. Consider using PASV.
150 Opening ASCII mode data connection for rfc959.txt (147316 bytes).
226 Transfer complete.
local: rfc959.txt remote: rfc959.txt
151249 bytes received in 1.59 seconds (92.83 Kbytes/s)
ftp> bye
221 Goodbye.

Verify the download:

[ me@nextcube ]:~ $ more rfc959.txt
Network Working Group                                          J. Postel
Request for Comments: 959                                    J. Reynolds
                                                                     ISI
Obsoletes RFC: 765 (IEN 149)                                October 1985

                      FILE TRANSFER PROTOCOL (FTP)

Notes

• The client uses /usr/ucb/ftp, while the server runs /usr/etc/ftpd.
• All credentials and data are unencrypted.
• Use binary mode for any non-text file to avoid corruption.

FUN FACT:
ftp and many other OpenStep binaries live in /usr/ucb — named after the University of California, Berkeley, origin of BSD UNIX. Sun Solaris also kept a ucb/ directory for legacy BSD compatibility.

Network File System (NFS)

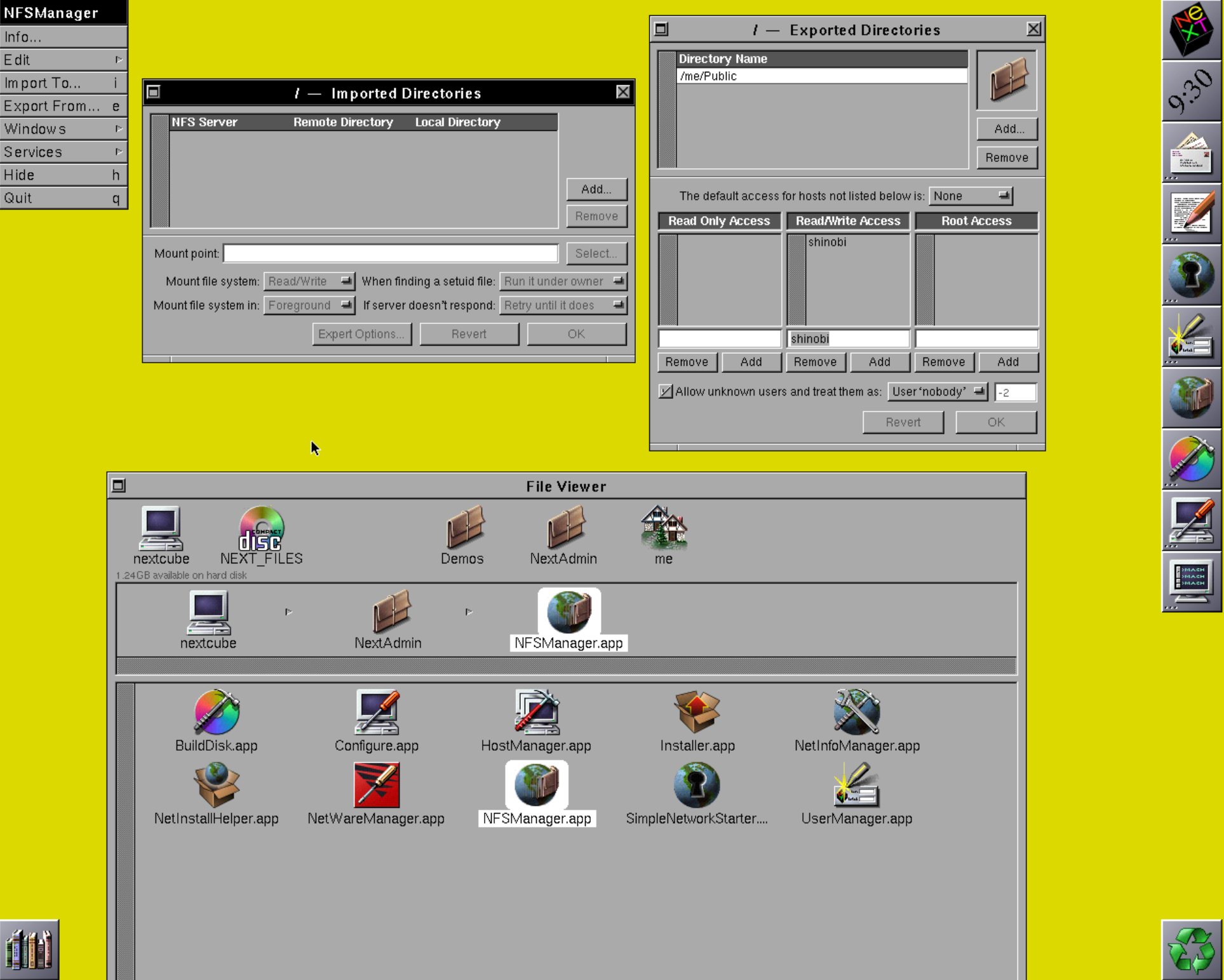

OpenStep includes a complete BSD-style NFSv2 implementation. File systems can be shared directly from the command line with /usr/etc/exportfs or through the graphical NFSManager.app located at /NextAdmin/NFSManager.app.
The GUI stores its configuration in NetInfo under /exports and /mounts, applying it immediately with exportfs. (See System Administration, Chapter 9: “Setting Up the Network File System” in the Librarian app for the original instructions.)

It’s not really useful in a modern network which is a shame since it has a really nice GUI and good documentation. I was hoping to make a side-channel VirtualBox shared folder.

Scanning the NFS Service

After creating an NFS export on nextcube, we are unable to connect from Linux.

┌──[ grumble@shinobi ]:~/codelab/NeXT
└─$ mount -t nfs nextcube:/Public ./Public/
mount.nfs: failed to apply fstab options

From our remote machine, nmap reveals the following:

┌──[ grumble@shinobi ]:~/codelab/NeXT
└─$ sudo nmap -sU -sT -p 111,2049 --script nfs-ls,nfs-showmount,nfs-statfs nextcube
Starting Nmap 7.80 ( https://nmap.org ) at 2025-11-15 15:15 CST
Nmap scan report for nextcube (192.168.1.50)
Host is up (0.12s latency).
rDNS record for 192.168.1.50: nextcube.darkstar.home

PORT     STATE  SERVICE
111/tcp  open   rpcbind
2049/tcp closed nfs
111/udp  open   rpcbind
2049/udp open   nfs

Nmap done: 1 IP address (1 host up) scanned in 3.36 seconds

Again from our (modern Linux) host, rpcinfo clearly shows which RPC programs are registered on the OpenStep server:

┌──[ grumble@shinobi ]:~/codelab/NeXT
└─$ rpcinfo -p nextcube
   program vers proto   port  service
    100000    2   tcp    111  portmapper
    100000    2   udp    111  portmapper
 200100001    1   udp    706
 200100001    1   tcp    709
    100026    1   udp    741  bootparam
    100011    1   udp   2585  rquotad
    100001    1   udp   2586  rstatd
    100001    2   udp   2586  rstatd
    100001    3   udp   2586  rstatd
    100002    1   udp   2587  rusersd
    100002    2   udp   2587  rusersd
    100012    1   udp   2589  sprayd
    100008    1   udp   2590  walld
 200100002    1   udp   2592
    100003    2   udp   2049  nfs
    100005    1   udp    659  mountd
    100005    1   tcp    663  mountd

Only the mountd service (100005) registers on TCP; the main NFS daemon (100003) provides version 2 over UDP only.
Modern Linux and BSD clients, which default to NFSv3 or NFSv4 over TCP, can contact mountd but fail when the file transfer channel negotiates—resulting in the message
mount.nfs: requested NFS version or transport protocol is not supported.

Interestingly, our NFS settings get stored in netinfo:

su-2.00# nidump exports /
/me/Public      -access=shinobi

Compatibility Notes

• ✅ Two OpenStep or NeXTSTEP systems on the same LAN can mount each other’s exports normally.
  Example:

  su
  mkdir -p /Net/nextcube/Public
  mount -t nfs nextcube:/Public /Net/nextcube/Public


• ⚠️ Modern NFS clients cannot mount from OpenStep because they no longer support NFSv2/UDP.
• 📚 Reference: RFC 1094 – Network File System Specification

On modern systems, NFSv2 has been removed from the kernel and would require recompiling in order to talk to NeXT. So move on and use ftp unless you are talking to other vintage OSes.

┌──[ grumble@shinobi ]:~/codelab/NeXT
└─$ sudo mount -t nfs -o vers=2,udp,proto=udp nextcube:/Public ./Public/
mount.nfs: requested NFS version or transport protocol is not supported

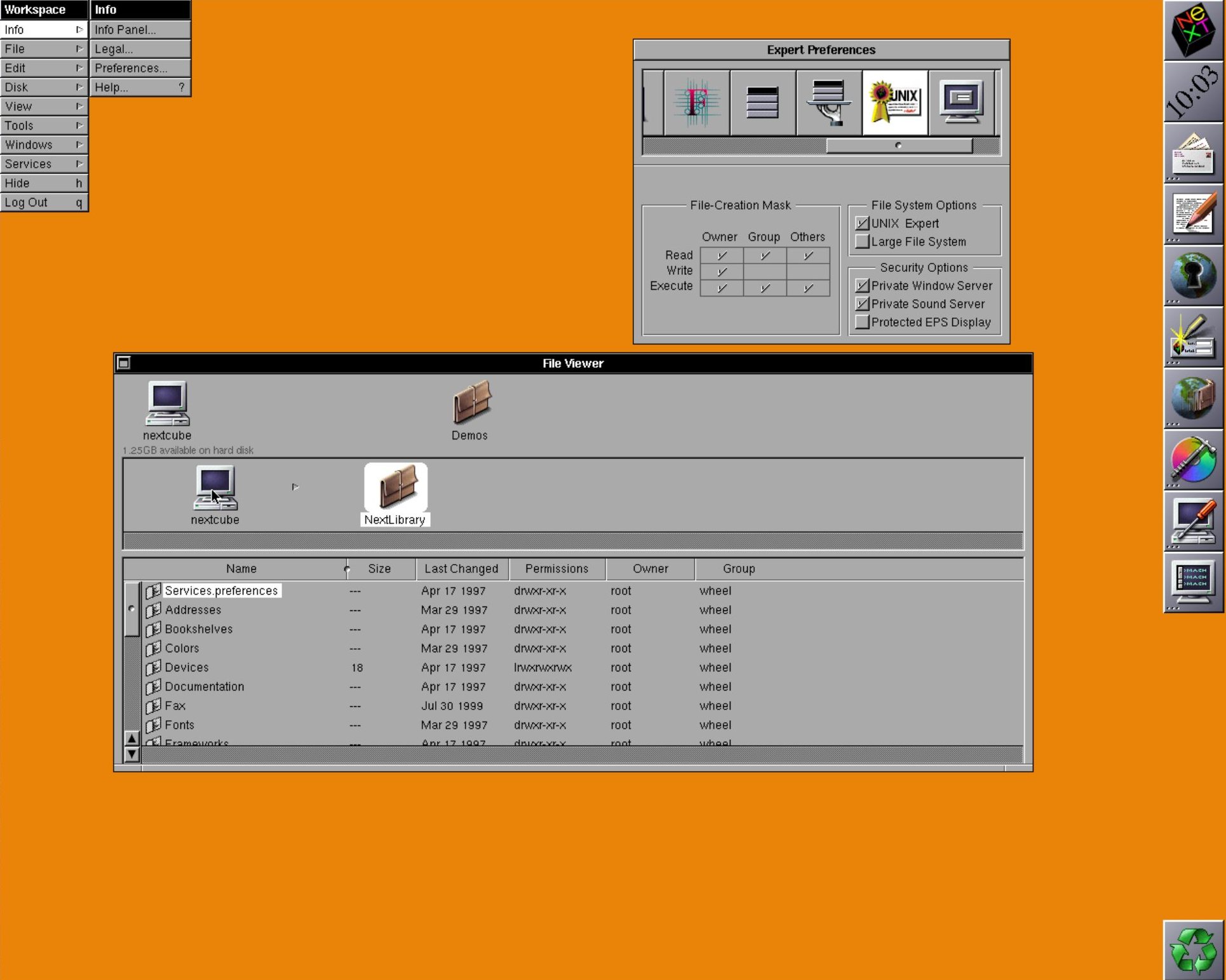

The Workspace Manager File Viewer

The File Viewer in OpenStep is pretty snazzy for the time. It supported common file operations via drag and drop and the Workspace menu.

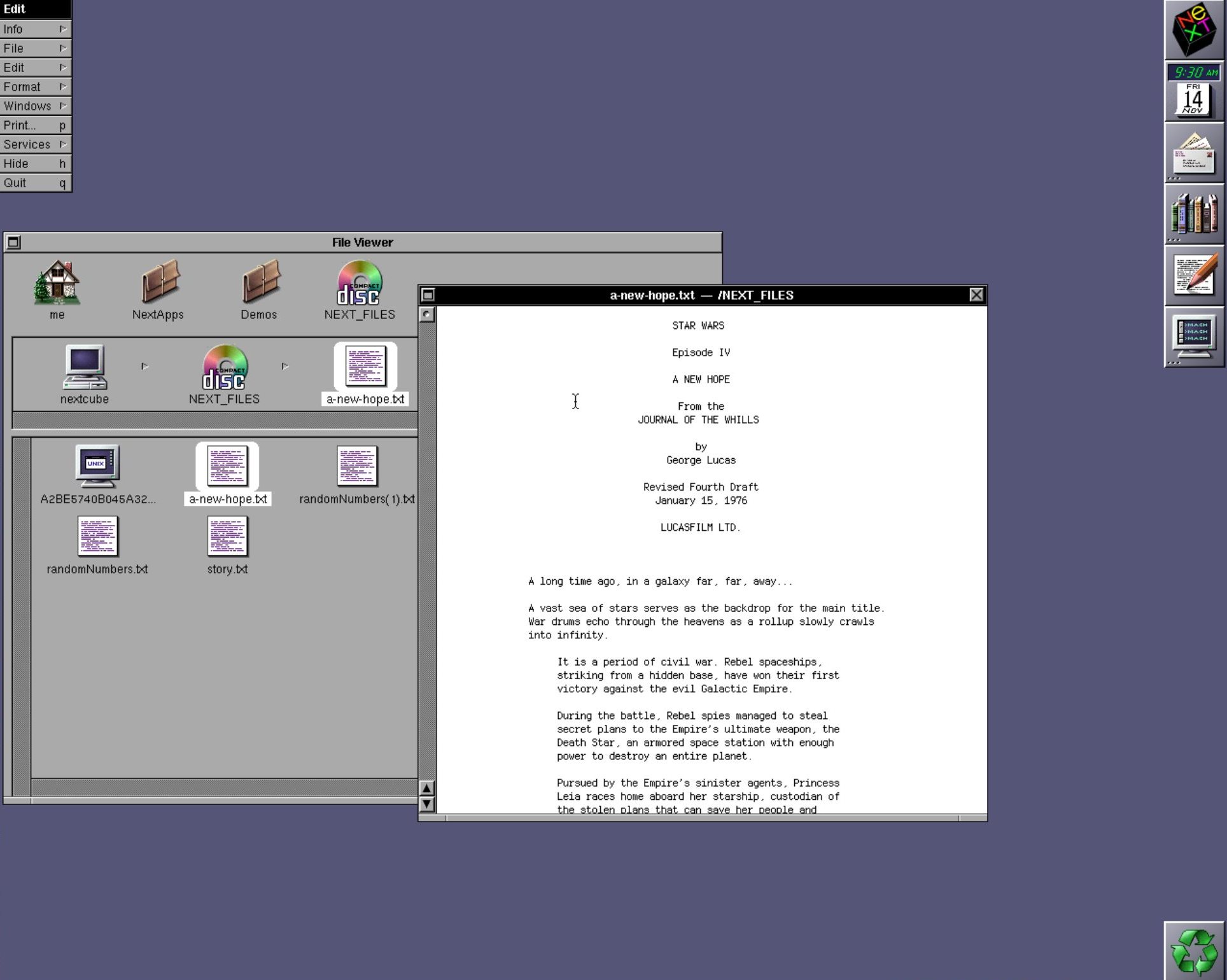

👟 Sneakernet ISOs

One handy technique to transfer files is with a sneakernet ISO image. Just build a small ISO on your host containing files you wish to transfer, attach it in VirtualBox, and copy the files inside NeXT.

On the host (macOS/Linux):

genisoimage -r -J -joliet-long -iso-level 3 \
  -V "SNEAKERNET" -o SNEAKERNET.iso /path/to/files/

• -r Rock Ridge (UNIX metadata)
• -J -joliet-long long filenames
• -iso-level 3 long names/deeper dirs
• -V "SNEAKERNET" sets the volume label
• -o SNEAKERNET.iso output image

Attach SNEAKERNET.iso as a CD-ROM in VirtualBox.

Inside NeXT:

• The ISO mounts at /<volume-label>, so here it will be /SNEAKERNET:
• Copy the files out:

  cp -R /SNEAKERNET/* /me/Downloads/


A Tour of the Filesystem

OpenStep inherits its BSD roots but layers on NeXT’s own structure for apps, libraries, and documentation — the ancestor of macOS’s /System and /Library.
The root level is tidy: core UNIX paths alongside distinctive NeXT directories like /NextLibrary, /NextApps, and /NextDeveloper.

Key Areas

Binaries

• /bin, /usr/bin — core user utilities
• /usr/etc — system daemons (ftpd, inetd, sendmail, lpd)
• /usr/ucb — BSD-compatibility commands
• /usr/gnu/bin — GNU tools (gcc, make, emacs)
• /usr/local/bin — local additions
  (No /sbin; management tools live in /usr/etc.)

Configuration

• /etc → /private/etc — symbolic link to real configs
• /etc/hostconfig, /etc/rc* — system identity and startup scripts
• /etc/netinfo/local.nidb — NetInfo database (users, hosts, mounts)
• /etc/fstab, /etc/services, /etc/hosts — familiar UNIX files

Logs & Runtime

• /usr/adm → /private/adm — system logs
• /usr/spool → /private/spool — mail and print queues
• /tmp, /dev → /private/* — temporary and device files

Documentation

• /usr/man → /NextLibrary/Documentation/ManPages
• /NextLibrary/Bookshelves — system and developer manuals

Shared Resources

• /NextLibrary/Frameworks — AppKit, Foundation, etc.
• /NextLibrary/ — global assets

Development

• /NextDeveloper/Apps — Interface Builder, Project Builder
• /NextDeveloper/Examples, /NextDeveloper/Headers — source and APIs
• /NextDeveloper/Source/GNU — compiler and toolchain sources

NeXT’s filesystem design was clean, logical, and modular — decades ahead of its time.
It separates binaries, configuration, and writable state clearly, and its /Next* hierarchy became the blueprint for macOS’s modern system layout.

System Documentation

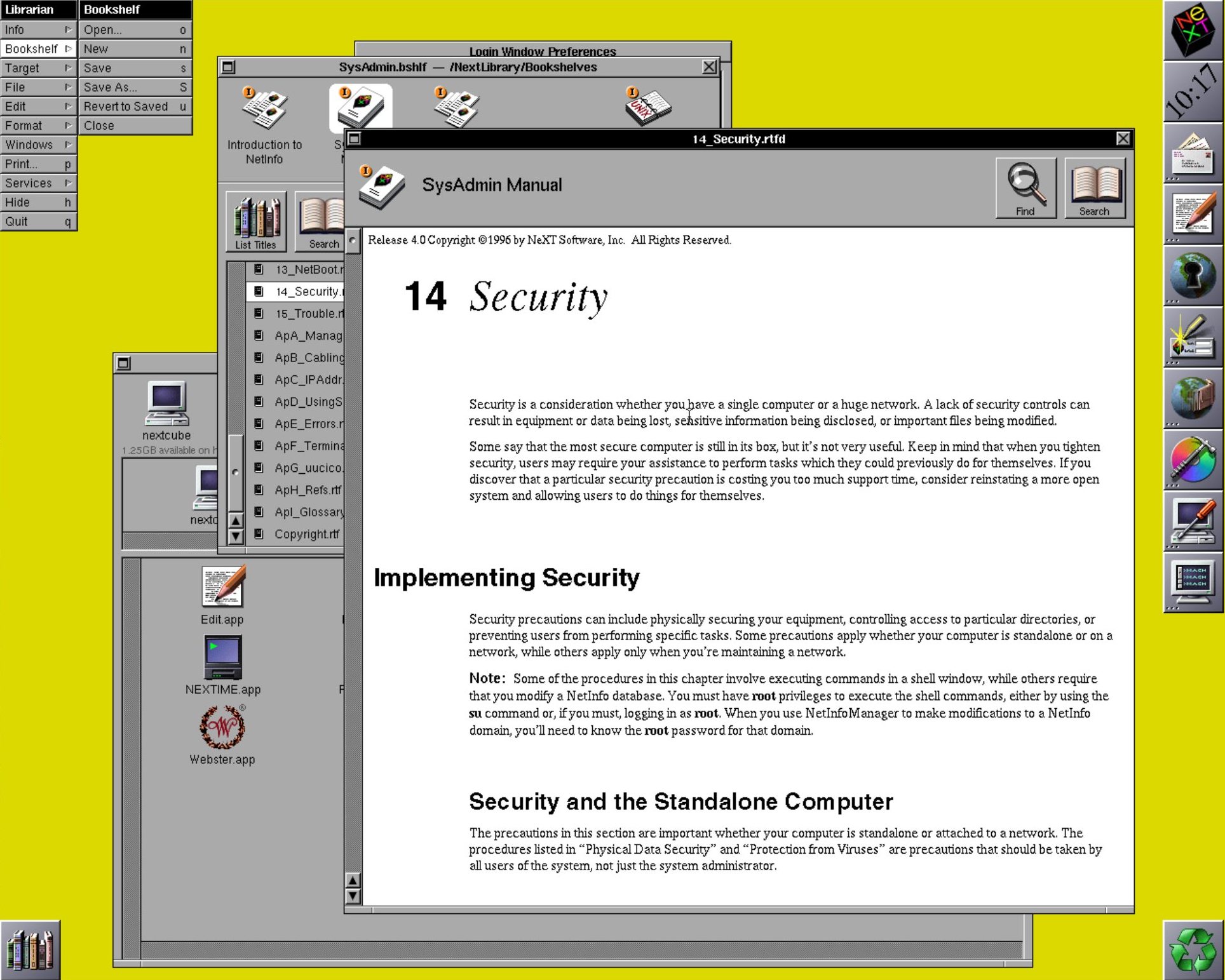

Time to RTFM. OpenSTEP installs a good bit of documentation in the form of Bookshelf files and man pages. You can open the Librarian.app in /NextApps and the documentation for the OS and the Developer Tools lives in /NextLibrary/Bookshelves

At the terminal you can use man or search for a topic with apropos like so:

[ me@nextcube ]:~ $ man -k inetd
inetd (8)               - internet ``super\-server''

[ me@nextcube ]:~ $ apropos inetd
inetd (8)               - internet ``super\-server''

[ me@nextcube ]:~ $ man inetd

Recommended Reading

The NeXT System Administration Manual (Release 4.0) closed with a “Suggested Reading” appendix.
Repeated here for historical and vintage-reading pleasure, it reflects the technical canon of the era: the books NeXT engineers themselves considered essential. I had most of these at one point!

General UNIX

• The UNIX Programming Environment — Brian W. Kernighan & Rob Pike
• The C Programming Language, 2nd Ed. — Kernighan & Ritchie
• UNIX Power Tools — Jerry Peek, Mike Loukides, & Tim O’Reilly
• sed & awk — Dale Dougherty
• The Design and Implementation of the 4.3BSD UNIX Operating System — Leffler, McKusick, Karels, & Quarterman
• Programming Perl — Larry Wall & Randal L. Schwartz

System Administration

• UNIX System Administration Handbook — Nemeth, Snyder, & Seebass
• TCP/IP Network Administration — Craig Hunt
• Managing UUCP and Usenet — Grace Todino & Tim O’Reilly

Networking

• DNS and BIND — Paul Albitz & Cricket Liu
• Internetworking with TCP/IP (Vols. I–III) — Douglas Comer & David Stevens
• TCP/IP Illustrated, Vol. 1 — W. Richard Stevens
• UNIX Network Programming — W. Richard Stevens
• Managing NFS and NIS — Hal Stern

Security

• Practical UNIX Security — Simson Garfinkel & Gene Spafford
• Firewalls and Internet Security — Cheswick & Bellovin
• The Cuckoo’s Egg — Clifford Stoll

Internet

• The Whole Internet User’s Guide & Catalog — Ed Krol
• Zen and the Art of the Internet — Brendan Kehoe
• The Internet Companion — Tracy LaQuey & Jeanne Ryer

Hardware

• The Winn L. Rosch Hardware Bible, 3rd Edition — Winn L. Rosch

Preferences

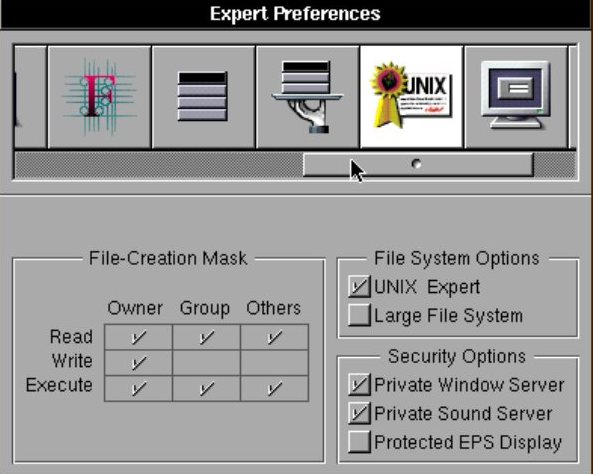

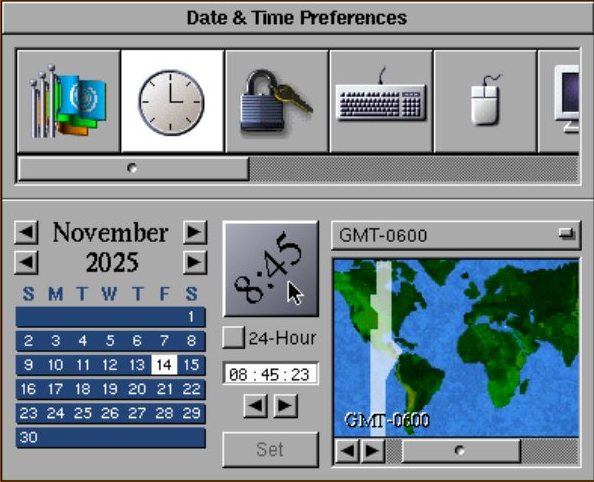

The Preferences.app in /NextApps/ provides a central place to adjust system behavior — window styles, sounds, networking, time, and more — concepts that later evolved into macOS System Preferences.

Most of these options are undocumented but self-explanatory.

Interestingly, the files
/me/.OpenStep/.NeXTdefaults.L (user settings) and
/.NeXT/.NeXTdefaults.L (system-wide settings)
are NeXTSTEP/OPENSTEP’s early equivalent of macOS .plist files — compact binary databases that store preferences and GUI state for both the user and the system.

Each setting inside these files is serialized as key–value pairs used by the Preferences panels and Workspace Manager.

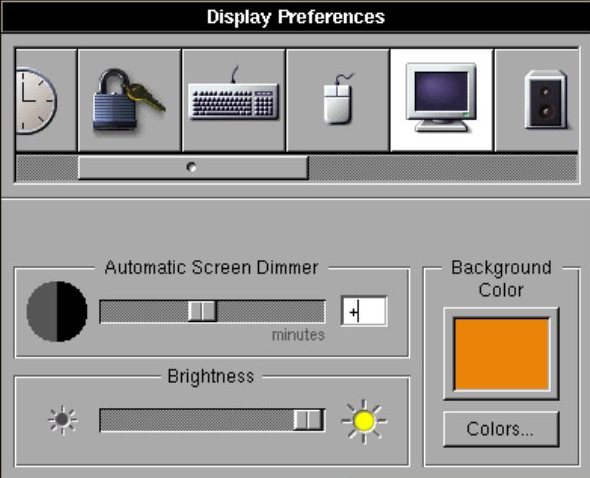

For example, setting the background color and then running strings on these files yields:

NeXT1BackgroundColor .846690 0.903455 0.837703

The OS represents the RGB components of the desktop background color as floating-point values between 0.0 and 1.0 (red, green, blue).
Here, (0.85, 0.90, 0.84) corresponds to a light, slightly greenish gray — the color encoding used by NeXT’s NXColor system long before hex color notation became standard.

There are plenty of settings available.

Network Services

inetd

The Internet Super-Server, inetd, is the master network daemon that spawns dozens of smaller services on demand.
Rather than running separate daemons for each port, OpenStep starts a single lightweight inetd process at boot (from /etc/rc), which listens for incoming TCP and UDP connections defined in /etc/inetd.conf. When a request arrives, inetd looks up the service, forks, and either handles the request internally (for simple services like echo, discard, daytime, or time) or launches the appropriate daemon (telnetd, ftpd, fingerd, etc.).

This model dates back to 4.3BSD and made UNIX systems far more efficient—only the active services consume memory. NeXT’s implementation adds RPC support and retains full compatibility with classic BSD-style configuration.

We can demonstrate their behavior directly from another host with telnet (or nc):

┌──[ grumble@shinobi ]:/etc
└─$ telnet nextcube 7
Trying 192.168.1.50...
Connected to nextcube.darkstar.home.
Escape character is '^]'.
test
test
echo echo echo
echo echo echo
^]
telnet> quit
Connection closed.

┌──[ grumble@shinobi ]:/etc
└─$ telnet nextcube 9
Trying 192.168.1.50...
Connected to nextcube.darkstar.home.
Escape character is '^]'.
this message will self destruct
^]
telnet> quit
Connection closed.

┌──[ grumble@shinobi ]:/etc
└─$ telnet nextcube 13
Trying 192.168.1.50...
Connected to nextcube.darkstar.home.
Escape character is '^]'.
Thu Nov 13 15:16:40 2025
Connection closed by foreign host.

┌──[ grumble@shinobi ]:/etc
└─$ telnet nextcube 37
Trying 192.168.1.50...
Connected to nextcube.darkstar.home.
Escape character is '^]'.
���AConnection closed by foreign host.

┌──[ grumble@shinobi ]:~/codelab/NeXT
└─$ # Perl one-liner (also forces network order)
nc -w1 nextcube 37 | perl -we 'read STDIN, $_, 4 or die; ($n)=unpack("N", $_); print scalar gmtime($n-2208988800), "\n";'
Sat Nov 15 22:23:42 2025

read STDIN, $_, 4 or die;                 # read exactly 4 bytes from stdin (the RFC 868 response)
($n)=unpack("N", $_);                     # unpack them as a 32-bit unsigned integer in network (big-endian) order
print scalar gmtime($n-2208988800), "\n"; # convert from 1900 epoch to 1970 by subtracting 2,208,988,800 seconds,
                                           # then print the corresponding UTC time in human-readable form

┌──[ grumble@shinobi ]:/etc
└─$ telnet nextcube 79
Trying 192.168.1.50...
Connected to nextcube.darkstar.home.
Escape character is '^]'.
me
Login name: me                          In real life: My Account
Directory: /me                          Shell: /usr/gnu/bin/bash
On since Nov 12 15:53:07 on console     209 days Idle Time
Plan:

This .plan file has not been set up by its owner yet.

Login name: me                          In real life: My Account
Directory: /me                          Shell: /usr/gnu/bin/bash
On since Nov 13 11:54:35 on ttyp1 from 192.168.1.51
1 minute 50 seconds Idle Time
Plan:

This .plan file has not been set up by its owner yet.

Connection closed by foreign host.

┌──[ grumble@shinobi ]:/etc
└─$ telnet nextcube 512
Trying 192.168.1.50...
Connected to nextcube.darkstar.home.
Escape character is '^]'.
ls
^]
telnet> quit
Connection closed.

┌──[ grumble@shinobi ]:/etc
└─$ telnet nextcube 513
Trying 192.168.1.50...
Connected to nextcube.darkstar.home.
Escape character is '^]'.
^]
telnet> quit
Connection closed.

┌──[ grumble@shinobi ]:/etc
└─$ telnet nextcube 517
Trying 192.168.1.50...
telnet: Unable to connect to remote host: Connection refused

┌──[ grumble@shinobi ]:/etc
└─$ telnet nextcube 113
Trying 192.168.1.50...
telnet: Unable to connect to remote host: Connection refused

Sendmail and Mail.app

Email was a first-class citizen in the NeXT ecosystem. NeXTSTEP and OpenStep treated mail as an essential part of the workstation experience — not an add-on. Every system shipped with a polished graphical mail client, Mail.app, and a fully configured Sendmail daemon running quietly in the background as its local Mail Transfer Agent (MTA). Together they formed a complete messaging stack: Mail.app for the user interface, Sendmail for delivery and routing.

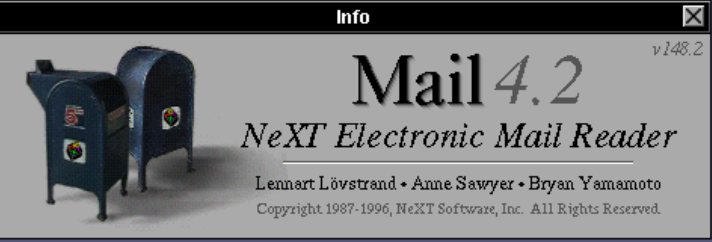

Mail.app

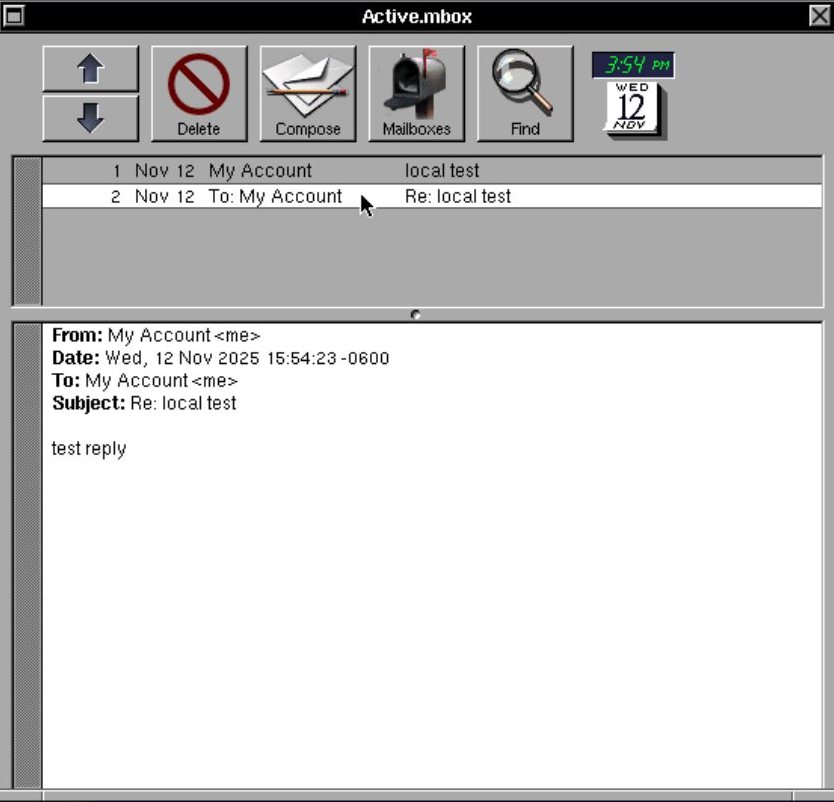

The mail app is pretty self explanatory and obviously the grandaddy of the modern Apple Mail.app.

Sendmail

Beneath the NeXT graphical shell, Sendmail is the workhorse moving every message. It’s installed and enabled by default, acting as both a local delivery agent and a basic SMTP server for the system. You don’t need POP or IMAP here — messages between local accounts move entirely through the Sendmail queue in /usr/spool/mqueue, and each user’s mailbox lives as a simple text file under /usr/spool/mail/.

You can get the version with the following:

[ me@nextcube ]:~ $ /usr/lib/sendmail -bt -d0.4 < /dev/null
Version NX5.67g
canonical name: nextcube
          fqdn: nextcube
using configuration file /etc/sendmail/sendmail.cf -> sendmail.subsidiary.cf
ADDRESS TEST MODE
Enter <ruleset> <address>
[Note: No automatic ruleset 3 call]

The fun part? You can talk to Sendmail directly. It listens on port 25 and speaks plain SMTP, so you can open a connection with telnet, issue commands by hand, and watch your cube deliver its own mail like it’s 1995.

telnet localhost 25

Trying 127.0.0.1...
Connected to localhost.
Escape character is '^]'.
220 nextcube Sendmail NX5.67g/NX3.0S ready at Wed, 12 Nov 2025 16:02:11 -0600

HELO nextcube
MAIL FROM:<me@nextcube>
RCPT TO:<me@nextcube>
DATA
Subject: telnet test
From: me@nextcube
To: me@nextcube

hello me, this is your NeXT talking to itself over SMTP.
.
QUIT

250 OK
221 nextcube closing connection
Connection closed by foreign host.

[ me@nextcube ]:~ $ Mail
Mail version 8.1 6/6/93.  Type ? for help.
"/usr/spool/mail/me": 1 message 1 new
>N  1 me                    Wed Nov 12 15:50  12/299   "telnet test"
& more 1
Message 1:
From me@nextcube  Wed Nov 12 15:50:11 2025
Subject: telnet test
To: me@nextcube

hello me, this is your NeXT talking to itself over SMTP.
& quit
Held 1 message in /usr/spool/mail/me

Behind the scenes, Sendmail on NeXT isn’t just a standalone daemon — it’s deeply tied into the NetInfo system.
The designated mail server is identified by the alias mailhost, and every client knows which Sendmail configuration to use via entries in the NetInfo /locations/sendmail directory.
Even Mail.app’s address book and sender pictures come from shared NetInfo data, updated nightly by the mailDBupdate cron job.

the Web Server

In Part 2 we built the w3c-httpd web server for Intel NeXT. It is historically pleasing to see a website served by nextcube. We’ll take a closer look at it in this section.

As configured, your installation lives entirely under /usr/local/httpd, with a tidy BSD-style layout:

The daemon starts as root only long enough to bind port 80, then drops privileges to nobody.
Everything — config, HTML, and logs — lives neatly inside /usr/local/httpd, so it’s easy to back up or snapshot.

When launched, it identifies itself with:

............ This is CERN-HTTPD, version 3.0A, using libwww version 2.17
Reading..... /usr/local/httpd/conf/httpd.conf

From there, you can fetch http://192.168.1.50/ for the system page, or http://192.168.1.50/~me/ for your personal space.

┌──[ grumble@shinobi ] :~
└─$ telnet nextcube 80
Trying 192.168.1.50...
Connected to nextcube.darkstar.home.
Escape character is '^]'.
GET / HTTP/1.0

HTTP/1.0 200 Document follows
Server: CERN/3.0A
Date: Wed, 12 Nov 2025 21:24:40 GMT
Content-Type: text/html
Content-Length: 43
Last-Modified: Sun, 20 Apr 1997 12:42:55 GMT

<h1>Welcome to CERN httpd on OpenStep</h1>
Connection closed by foreign host.

┌──[ grumble@shinobi ] :~
└─$ telnet nextcube 80
Trying 192.168.1.50...
Connected to nextcube.darkstar.home.
Escape character is '^]'.
GET /~me/ HTTP/1.0

HTTP/1.0 200 Document follows
Server: CERN/3.0A
Date: Wed, 12 Nov 2025 21:27:32 GMT
Content-Type: text/html
Content-Length: 24
Last-Modified: Sun, 20 Apr 1997 12:42:55 GMT

<h1>Hello from ~me</h1>
Connection closed by foreign host.

Web Browser

Next we’ll need a web browser so we can surf the Internet super-highway while quoting the movie Hackers!

The VirtualBox OVA appliance from Part 1 already includes OmniWeb, the period-correct browser for NeXTSTEP.
If you’re building your own system, you can find it in the Lighthouse Design Suite from
Lighthouse (NeXTSTEP Applications).

Convert the .mdf image to ISO before mounting:

sudo apt install mdf2iso   # or brew install mdf2iso on macOS
mdf2iso LIGHTHOUSE.mdf LIGHTHOUSE.iso

Mount LIGHTHOUSE.iso in your VM and install OmniWeb (and the rest of the suite).
Once copied into /LocalApps, launch it from Workspace Manager or:

open /LocalApps/OmniWeb.app

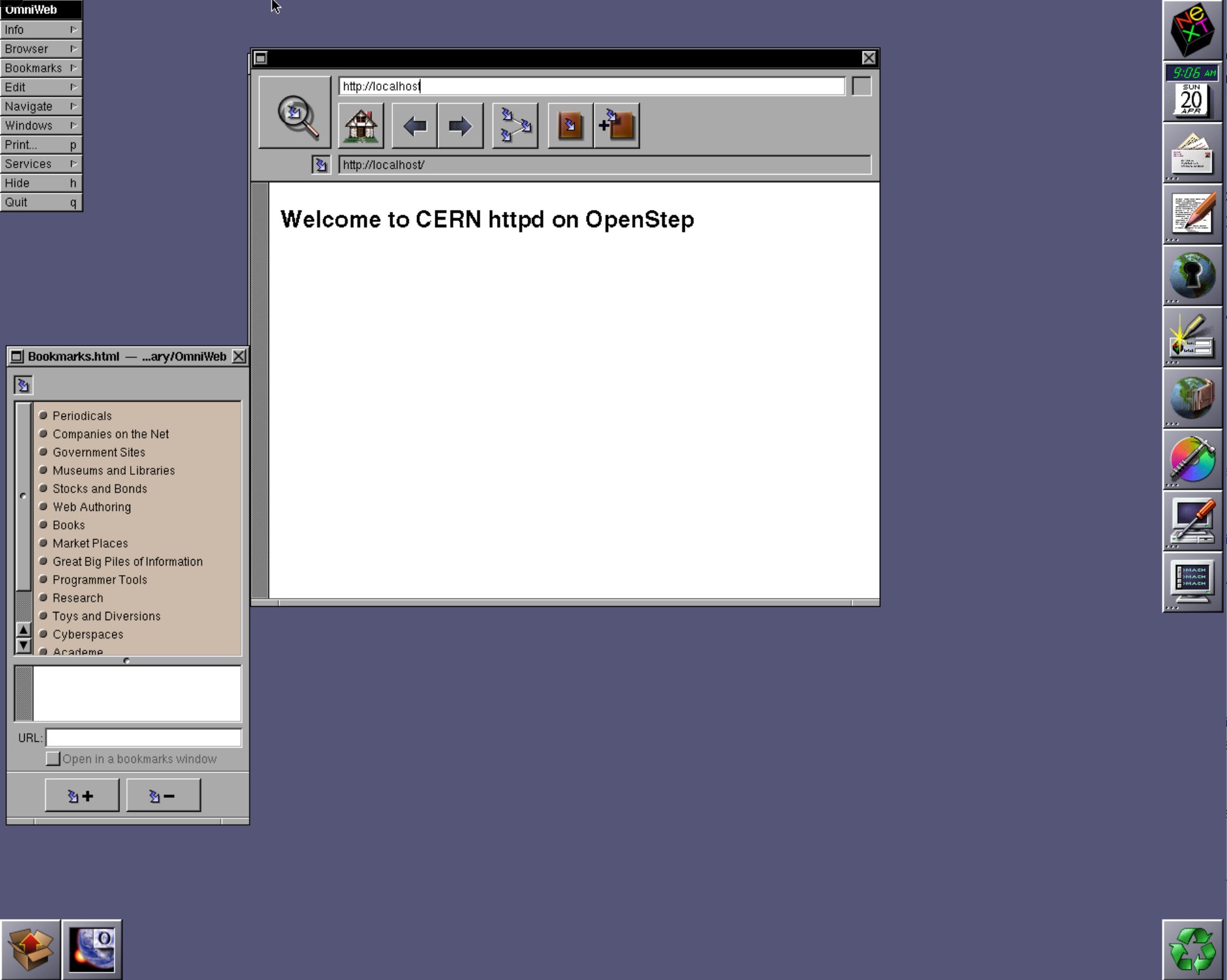

You can visit nextcube’s own local site at http://127.0.0.1/ or check out a few fun sites aimed at vintage machines:

• NeXTComputers.org — Home of the international NeXT forums
• TheOldNet.com — Retro-web portal optimized for vintage browsers
• FrogFind — Lightweight search engine for vintage machines

Directory and Network Integration

OpenStep supports several legacy directory and authentication systems common in mixed UNIX environments of the 1990s.
NetInfo remains the system’s native database for users, groups, hosts, and network services — roughly analogous to early LDAP.
It can coexist with NIS (Yellow Pages) for compatibility with older UNIX networks, and includes optional NetWare client support for file and print services.

In most standalone setups, only NetInfo is active, but these subsystems illustrate how NeXT aimed to fit seamlessly into larger multi-vendor networks of the time.

For more information, refer to the NFS section of the SysAdmins Guide in the /NextLibrary/Bookshelves folder.

System Hardening

OpenStep was built for a friendlier network era, but NeXT’s own System Administration Guide (Release 4.0) includes several practical ways to tighten things up. Here are a few quick checks worth doing — or at least exploring — before you put your cube on a modern LAN.

🛠 Entering Single-User Mode

On most OpenStep 4.x installations running under VirtualBox or genuine NeXT hardware, the boot screen appears automatically — a gray window with a ten-second countdown and a boot: prompt at the bottom.
You don’t need to hold any special key combinations unless a hardware password is enabled.

When you see the countdown, simply click inside the window (or press any key) to stop the timer.
You can then enter boot arguments directly at the prompt:

mach_kernel -v -s

and press Return.

The options mean:

• -v — verbose mode (displays detailed startup messages)
• -s — single-user mode (boots to a root shell instead of multi-user login)

The system loads the kernel, mounts the root filesystem read-only, and drops you at a minimal shell:

sh-2.00#

From here you can perform maintenance tasks such as:

fsck -y /dev/sd0a        # Check and repair the root filesystem
mount -a                 # Mount all local filesystems
passwd <username>        # Reset a user's password

When finished, type:

exit

to continue booting normally, or:

reboot

to restart cleanly.

Note
Earlier NeXTSTEP manuals refer to bsd -s, which was a link to the kernel on older releases.
On OpenStep 4.x, the correct binary name is mach_kernel.
The same prompt can load alternate kernels such as cdrom or floppy for installation or recovery.
If a hardware password is set in Preferences, you must enter it before custom boot arguments are accepted.

Auditing Set-User-ID Programs

NeXT systems ship with dozens of setuid and setgid binaries — around eighty in a default install — many of which allow normal users to perform administrative actions without sudo (which doesn’t exist on NeXT).
You can review them with:

find / -perm -4000 -user root -print

or include all users:

find / -perm -4000 -print

Each file you see runs with elevated privileges. You can remove the bit with chmod u-s, but some tools (like Preferences, PrintManager, or network utilities) rely on it to work properly.
Consider this an exercise in exploration — compare, document, and test rather than disabling everything blindly.

Trimming inetd Services

inetd launches a variety of network services automatically at boot, many of which are only useful for diagnostics or legacy clients.
Review /etc/inetd.conf and comment out anything you don’t plan to use. On a secure setup, you can safely disable:

echo, discard, chargen, daytime, time
finger, rshd, rlogind, rexecd
talkd, ntalkd, tftpd
rusersd, sprayd, walld

After editing, restart the daemon or send it a HUP signal:

kill -HUP `cat /etc/inetd.pid`

That trims away most of the “small services” that modern systems disable by default, leaving just Telnet or FTP if you actually need them.

Strengthening Password Policy

Password rules and login behavior are managed through NetInfo.
In NetInfoManager (or using niutil), you can enable stricter checks by setting the security_options property in the root domain:

niutil -createprop . security_options secure_passwords
niutil -appendprop . security_options lockout
niutil -appendprop . security_options login_accounting

These enable stronger passwords, exponential lockout delays after failed logins, and basic login auditing to /usr/adm/messages.
For convenience, NeXT also offered a “discourage_public_servers” flag to hide sound and display sharing options in Preferences.

These simple changes go a long way toward tightening an OpenStep install while keeping it historically accurate. It will also accurately break under the ping of death and any number of buffer overrun attacks, so keep it off the Internet.

For a full list of available security options and examples, see System Administration, Chapter 12: “Security” in the Librarian documentation.

Links and Stuff

Project Links

• Part 1 – An OpenStep 4.2 VM in 2025
• Part 2 – Finishing the OpenStep 4.2 Appliance
• OpenStep 4.2 VirtualBox OVA (Appliance Download)

Archives and References

• Archive.org – OpenStep Collection — installation media, developer tools, and system images
• Archive.org – NeXTWORLD Magazine Archive — full issues and ads from the ’90s

Community

• NeXTComputers.org Forums — active NeXT/OPENSTEP community and hardware archives

Conclusion

I’ve used the terms NeXT, NeXTSTEP, and OpenStep interchangeably throughout this series — guilty as charged.
Technically, OpenStep is the correct name, but NeXT is just more fun to type (inverse CamelCase has a certain charm).

It’s been a rewarding little trip through a sleek, prohibitively expensive at the time, slice of computing history.
OpenStep runs beautifully under VirtualBox on Linux, and even on my Intel MacBook Pro running Ubuntu it feels snappy and solid.
With a few GNU tools and a sensible shell, it’s a genuinely usable UNIX workstation — elegant in that NeXT way.

VirtualBox’s remote display feature never quite behaved, so I stuck to Telnet and FTP for remote access.
It’s probably not worth the effort to chase perfect mouse capture so it remains too awkward to really use.

After all these years, it’s still easy to see why NeXT inspired so much devotion.
OpenStep remains both a product of its time and a glimpse of the future it quietly became.

Feedback welcome feedback@adminjitsu.com
