It All Started with a Power Surge

Everything was humming along smoothly until one day earlier this year when we had a big, dramatic, Texas thunderstorm. Lightning caused a transformer to explode and the resulting power surge took out my old x86 server, a raspberry pi that I was using for games with retropie, a big hard drive full of data, an IPS monitor and the AV receiver connected to my PC (It also took out all the outlets in the garage but that’s another story).

“Needless to say, I was despondent about the meltdown. In the midst of my preparations for hari-kari… it came to me.” — Real Genius

After arriving at the Acceptance stage of grief, I started to dream up a newer, better, cheaper replacement. Before long a package arrived with my new server: a raspberry pi5, a Pironman 5 case and a 1TB NVME SSD.

Meet GIR

Named for Invader Zim’s insane robot sidekick (who often disguised himself in a zip-up, green dog costume), GIR proved to be a powerful replacement. Built around the concept of memento mori, everything is managed, backed up twice and stored in git. It has become a sort of Docker mothership and glue layer for my homelab and one of my favorite machines.

gir the insane robot © Nickelodeon / Jhonen Vasquez

The Hardware

  • Raspberry Pi 5 — These little hobbyist boards are relatively cheap and powerful and make a decent linux box.
  • 1TB NVMe SSD — NVMe SSDs are fast and fairly inexpensive these days
  • Pironman5 case — This case has it all and then some.
  • External USB drive — I have a 10tb drive for file sharing but it strains the I/O on this board so I’ll probably relocate it soon.

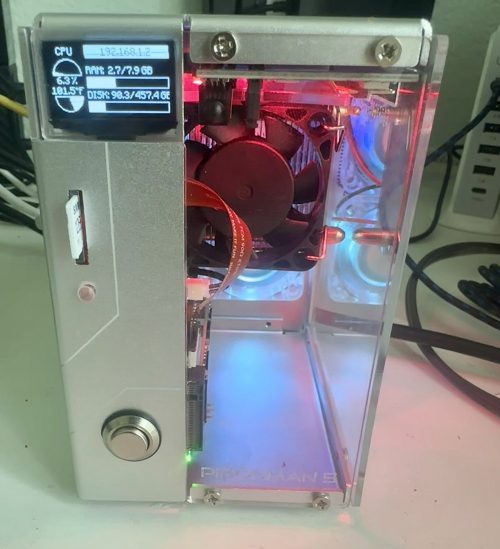

The Pironman5 Case

The Pironman 5 case is a superb alternative to the typical plastic cases available for the pi. While there is definitely some assembly required, it provides all the features I needed in an attractive case.

  • Active cooling (a beefy heatsink covers the main chips while a trio of fans ensure that your Pi stays nice and cool)
  • OLED screen (features a tiny, programmable oled screen that by default shows ip addresses, cpu and memory and temps right on the case)
  • NVMe support (support for NVMe drives is somewhat rare so this was a huge feature)
  • Looks cool (the “Saturday morning cartoon villain HQ” vibe)

If you’re in the market for a cool case, you should check out the reviews, like this one from tom’s HARDWARE

pironman 5 case

🐋 The Docker Stack

Most of GIR’s magic comes from Docker. Each service lives in its own container — easy to maintain, easy to update, no dependency tangles.

Here’s how I keep things organized: grouped by what they do, with one‑line descriptions. If you want the nitty‑gritty details, expand the sections for notes, tricky bits, and docker compose blocks. For a casual read, there is no need to expand every one unless you want to play Sim City with containers like I have.

🛠 System Tools

Pi-hole – DNS server and ad-blocker for the whole network.

More about Pi-hole
  • Runs as the primary DNS server.
  • Blackholes ad domains & telemetry.
  • Compose notes: maps /etc/dnsmasq.d and /etc/pihole for persistent config.

Docker Compose:

version: '3.3'

services:
  pihole:
    container_name: pihole
    image: pihole/pihole:latest
    hostname: pihole
    restart: always
    ports:
      - "53:53/tcp"
      - "53:53/udp"
      - "8080:80/tcp"
      - "8443:443/tcp"
    environment:
      TZ: "America/Chicago"
      WEBPASSWORD: "${WEBPASSWORD}"          # stored in a .env file
      DHCP_ROUTER: "192.168.50.1"            # example router IP
      VIRTUAL_HOST: "pihole.example.lan"     # safe placeholder domain
      PIHOLE_DNS_: "192.168.50.1;1.1.1.1"    # internal + public resolver
    volumes:
      - /var/docker/pihole/etc-pihole:/etc/pihole
      - /var/docker/pihole/etc-dnsmasq.d:/etc/dnsmasq.d
    networks:
      pihole_macvlan_network:
        ipv4_address: 192.168.50.5           # example Pi-hole IP

networks:
  pihole_macvlan_network:
    external: true

🔒 Note:

  • Replace the example IPs/domains with your own.
  • .env file (holding WEBPASSWORD) should never be committed to git.

Nginx Proxy Manager (NPM) – Handles all my proxy rules and SSL.

More about NPM
  • Front door for all services.
  • Simple UI to add/edit rules.

Docker compose / Portainer stack definition:

services:
  npm:
    image: jc21/nginx-proxy-manager:latest
    container_name: nginx-proxy-manager
    restart: always
    ports:
      - '80:80'
      - '81:81'   # UI (for managing proxy rules)
      - '443:443'
    volumes:
      - /var/docker/npm/data:/data
      - /var/docker/npm/letsencrypt:/etc/letsencrypt

Portainer – Web GUI to manage every container.

More about Portainer
  • My main “dashboard” for starting/stopping/restarting services.
  • Compose block shows how it maps /var/run/docker.sock.

Docker Compose:

version: '3.8'

services:
  portainer:
    image: portainer/portainer-ce:latest
    container_name: portainer
    restart: always
    ports:
      - "8000:8000"
      - "9000:9000"    # Web UI (HTTP)
      - "9443:9443"    # Web UI (HTTPS)
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - /var/docker/portainer:/data
    networks:
      - npm_default   # So NPM can proxy Portainer too

networks:
  npm_default:
    external: true

💡 Note: Portainer needs access to /var/run/docker.sock to manage Docker (that’s normal — but it’s essentially root‑level access).

Pi.Alert – Network presence monitor.

More about Pi.Alert
  • Watches the network for new/unknown devices.
  • Handy for spotting intruders… or just remembering when you bought that smart plug.
  • Compose notes: needs correct timezone env var, optional telegram alerts.

Docker Compose:

version: '3.3'

services:
  pialert:
    image: jokobsk/pi.alert:latest
    container_name: pialert
    network_mode: host          # Needed for full network visibility
    restart: unless-stopped
    volumes:
      - /var/docker/pialert/config:/home/pi/pialert/config
      - /var/docker/pialert/db:/home/pi/pialert/db
    cap_add:
      - NET_ADMIN
      - NET_RAW
    environment:
      - TZ=America/Chicago

🔒 Notes:

  • network_mode: host is required so Pi.Alert can see the whole LAN (but means it’s tightly bound to the host network — don’t expose this container externally).
  • Runs with NET_ADMIN and NET_RAW capabilities to sniff devices — normal for this app, but be mindful of what else you mount in here.

SyncThing SyncThing – Syncs files between all my machines.

More about Syncthing
  • Keeps critical folders mirrored between GIR and my laptops/desktops.
  • Handles my dotfiles repo, configs, and even some media — all in real time.

Docker Compose:

version: "3.8"

services:
  syncthing:
    image: syncthing/syncthing:latest
    container_name: syncthing
    restart: unless-stopped
    hostname: gir
    networks:
      - npm_default
    volumes:
      - /var/docker/syncthing/config:/var/syncthing/config
      - /var/docker/syncthing/data:/var/syncthing/data
    ports:
      - "8384:8384"    # Web UI
      - "22000:22000/tcp"
      - "22000:22000/udp"
      - "21027:21027/udp"  # Local discovery

networks:
  npm_default:
    external: true

🔒 Notes:

  • 8384 is the Syncthing Web UI — fine for LAN, but best proxied through Nginx Proxy Manager if you want remote access with HTTPS/auth.
  • Uses npm_default so it plays nicely with your proxy rules.
  • No secrets in this snippet (Syncthing keys live inside /var/docker/syncthing/config).

Statix – A super-lightweight web server for static files.

More about Statix
  • Runs a barebones nginx instance for serving test pages, quick downloads, or temporary files.
  • Perfect for quick “throw it in /var/www/html and share” moments.

Docker Compose:

version: '3.8'

services:
  statix:
    image: nginx:alpine
    container_name: statix
    ports:
      - "8081:80"
    volumes:
      - /var/www/html:/usr/share/nginx/html:ro
      - /var/docker/statix/nginx.conf:/etc/nginx/conf.d/default.conf:ro
    restart: unless-stopped
    networks:
      - npm_default

networks:
  npm_default:
    external: true

🔒 Notes:

  • :ro (read‑only) on the mounts means nginx can’t overwrite your files or configs — safer and cleaner.
  • Bound to npm_default so it can be proxied via Nginx Proxy Manager if needed.

gir saluting © Nickelodeon / Jhonen Vasquez

🏠 Dashboards & Home Pages

Dashy – My main homelab dashboard and jumping-off point.

More about Dashy
  • Shows links to all of GIR’s services, widgets, and quick status checks.
  • Lives at the center of the setup — it’s the page I open first every day.

Docker Compose:

version: '3.8'

services:
  dashy:
    container_name: dashy
    image: lissy93/dashy:latest
    ports:
      - "8090:8080"
    volumes:
      - /var/docker/dashy/config.yml:/app/user-data/conf.yml
      - ./my-nginx.conf:/etc/nginx/conf.d/default.conf:ro
    restart: always
    networks:
      - npm_default

networks:
  npm_default:
    external: true

🔒 Notes:

  • config.yml holds all the dashboard items and widgets — you can track that file in Git for easy rollbacks.
  • Mounting a custom nginx config (my-nginx.conf) gives you full control over how Dashy serves content.
  • Connected to npm_default so Nginx Proxy Manager can front it with HTTPS/auth.

Heimdall – A simple, lightweight launcher for quick access.

More about Heimdall
  • Works as a secondary dashboard for bookmarks and quick shortcuts.
  • Nice for testing layouts or keeping “less-used” services out of Dashy.

Docker Compose:

services:
  heimdall:
    container_name: heimdall
    image: lscr.io/linuxserver/heimdall:latest
    restart: always
    environment:
      - PUID=1000
      - PGID=1000
      - TZ=America/Chicago
    volumes:
      - /var/docker/heimdall:/config
    ports:
      - "8082:80"

🔒 Notes:

  • PUID/PGID (1000) match your main user, so Heimdall writes config files with the right ownership.
  • Bound to port 8082 — easy to proxy through Nginx Proxy Manager later.

🎛 Monitoring & Metrics

Netdata – Real-time performance monitoring for GIR.

More about Netdata
  • Gorgeous, interactive graphs for CPU, RAM, disk, containers — basically, the “vitals monitor” for GIR.
  • Lightweight but powerful, with resource limits set to avoid hogging the Pi.

Docker Compose:

version: "3.8"

services:
  netdata:
    image: netdata/netdata:latest
    container_name: netdata
    ports:
      - "19999:19999"
    cap_add:
      - SYS_PTRACE
    security_opt:
      - apparmor:unconfined
    volumes:
      - netdata_config:/etc/netdata
      - /proc:/host/proc:ro
      - /sys:/host/sys:ro
      - /etc/os-release:/host/etc/os-release:ro
      - /var/run/docker.sock:/var/run/docker.sock:ro
    networks:
      - default
      - npm_default
    environment:
      - DO_NOT_TRACK=1
    mem_limit: 256m
    cpus: 0.4   # limit to 40% of one core
    restart: unless-stopped

volumes:
  netdata_config:

networks:
  npm_default:
    external: true

🔒 Notes:

  • Runs in read-only mode for /proc and /sys — Netdata can see stats without modifying the host.
  • Docker socket is mounted read-only: safe for metrics, not for control.
  • mem_limit and cpus keep it lightweight on the Pi, so GIR doesn’t feel sluggish.

Uptime Kuma – Simple, slick uptime monitoring.

More about Uptime Kuma
  • Pings every important service (and a few external sites) so I know when something’s down.
  • Creates pretty status pages, and yes — sends alerts if something goes sideways.

Docker Compose:

version: '3.8'

services:
  uptime-kuma:
    container_name: uptime-kuma
    image: louislam/uptime-kuma:latest
    restart: always
    ports:
      - "3001:3001"
    volumes:
      - /var/docker/uptime-kuma:/app/data
    environment:
      - TZ=America/Chicago
    networks:
      - npm_network

networks:
  npm_network:
    driver: bridge

🔒 Notes:

  • Stores all monitors and history in /var/docker/uptime-kuma — easy to back up.
  • Runs on 3001 by default; you can proxy it through Nginx Proxy Manager for HTTPS and remote access.
  • Uses its own npm_network, but can be attached to your main npm_default if you want one shared network.

Speedtest Tracker – Logs internet speed over time.

More about Speedtest Tracker
  • Runs daily speed tests and keeps a history, so I know when my ISP is slacking.
  • Uses a simple SQLite database by default — no separate DB container needed.

Docker Compose:

version: "3.3"

services:
  speedtest-tracker:
    container_name: speedtest-tracker
    image: ghcr.io/alexjustesen/speedtest-tracker:latest
    restart: unless-stopped
    ports:
      - "8765:80"
    environment:
      - PUID=1000
      - PGID=1000
      - TZ=America/Chicago
      - DB_CONNECTION=sqlite
      - DB_DATABASE=/config/database/database.sqlite  # key setting for SQLite mode
    volumes:
      - /var/docker/speedtest-tracker/config:/config
      - /var/docker/speedtest-tracker/web:/etc/ssl/web

🔒 Notes:

  • Uses SQLite for simplicity — database lives inside /config, easy to back up.
  • Mounted web certs directory (/etc/ssl/web) can be used if you want to add HTTPS later.
  • Runs on 8765 by default — proxy through Nginx Proxy Manager for remote access or SSL.

© Nickelodeon / Jhonen Vasquez

🧰 Developer Tools

Gitea – My self-hosted Git server and code hub.

More about Gitea
  • Runs a lightweight Git server for all my configs, scripts, and projects.
  • Keeps my Docker compose files, dotfiles, and even documentation version-controlled right on GIR.

Docker Compose:

version: "3.8"

services:
  gitea:
    image: gitea/gitea:latest
    container_name: gitea
    restart: unless-stopped
    environment:
      - USER_UID=1000
      - USER_GID=1000
      - GITEA__server__DOMAIN=git.example.lan
      - GITEA__server__ROOT_URL=https://git.example.lan/
      - GITEA__server__SSH_DOMAIN=git.example.lan
      - GITEA__server__SSH_PORT=222
    volumes:
      - /var/docker/gitea:/data
    ports:
      - "3003:3000"   # Web interface
      - "222:22"      # SSH for git
    networks:
      - npm_default

networks:
  npm_default:
    external: true

🔒 Notes:

  • All Git data (repos, configs, attachments) lives in /var/docker/gitea — easy to back up.
  • Ports: 3003 for web UI, 222 for Git over SSH.
  • Connected to npm_default so Gitea sits neatly behind Nginx Proxy Manager for HTTPS.
  • Placeholder domain (git.example.lan) used here — swap for your own LAN/SSL domain.

Open-WebUI – A web front end for local LLM experiments.

More about Open-WebUI
  • Runs Qwen, Mistral, and other models on demand — my “AI playground” on GIR.
  • Great for testing prompts and tinkering with models without a cloud dependency.

Docker Compose:

version: "3.8"

services:
  open-webui:
    image: ghcr.io/open-webui/open-webui:main
    container_name: open-webui
    ports:
      - "3000:8080"
    volumes:
      - open-webui-data:/app/backend/data
    extra_hosts:
      - "host.docker.internal:host-gateway"
    restart: always

volumes:
  open-webui-data:

🔒 Notes:

  • Data (uploads, configs, models) stored in open-webui-data named volume — easy to back up.
  • Exposes port 3000 — proxy through Nginx Proxy Manager for HTTPS and remote access.
  • Uses host.docker.internal to connect to the host environment (helpful if models or tools live outside this container).

Jupyter – Interactive notebooks for Python tinkering and data work.

More about Jupyter
  • Great for experimenting with Python, data viz, and quick scripts — no token hassle, just a password prompt.
  • Runs fully local on GIR, so security is handled with a simple password and LAN isolation.

Docker Compose:

version: '3.8'

services:
  jupyter:
    image: jupyter/scipy-notebook:latest
    container_name: jupyter
    ports:
      - "8888:8888"
    volumes:
      - /var/docker/jupyter/notebooks:/home/jovyan/work
    command: start-notebook.sh --NotebookApp.token='' --NotebookApp.password='sha1:PUT-YOUR-HASH-HERE'
    restart: unless-stopped

🔑 Set a password hash:
Run this once on GIR (or any machine with Python):

docker run --rm jupyter/scipy-notebook:latest \
  python -c "from notebook.auth import passwd; print(passwd())"

Copy the hash (looks like sha1:123abc…) and paste it into –NotebookApp.password=‘sha1:YOUR-HASH’ in the compose file.

🔒 Notes:

NotebookApp.token=’’ disables the annoying one-time token login.

Still password protected, so anyone on your LAN will need that password to log in.

Stores notebooks in /var/docker/jupyter/notebooks for persistence and easy backups.

📺 Media & Fun (Occasional Use)

Jellyfin – A self-hosted media server for movies, shows, and music.

More about Jellyfin
  • Think “DIY Netflix,” but with total control and no subscriptions.
  • GIR runs it for occasional streaming and as a way to organize my local media.

Docker Compose:

version: "3.8"

services:
  jellyfin:
    image: jellyfin/jellyfin:latest
    container_name: jellyfin
    ports:
      - "8096:8096"
    volumes:
      - /var/docker/jellyfin/config:/config
      - /var/docker/jellyfin/cache:/cache
      - /mnt/sldf/VIDEO:/media
    environment:
      - TZ=America/Chicago
      - PUID=1000
      - PGID=1000
    restart: unless-stopped
    networks:
      - npm_default

networks:
  npm_default:
    external: true

🔒 Notes:

  • All configs live in /var/docker/jellyfin/config, and cache goes to /var/docker/jellyfin/cache for smoother playback.
  • Media library is mapped from /mnt/sldf/VIDEO — swap in your own mount point if you use this snippet.
  • Runs on port 8096; proxy it through Nginx Proxy Manager if you want HTTPS or external access.

PhotoPrism – A private photo library and indexing tool.

More about PhotoPrism
  • Automatically indexes and organizes images, including AI‑powered search and tagging.
  • Mostly experimental on GIR, but a fun “what if” for turning old drives into an archive.

Docker Compose:

version: '3.7'

services:
  photoprism:
    image: photoprism/photoprism:latest
    container_name: photoprism
    restart: unless-stopped
    ports:
      - "2342:2342"
    environment:
      PHOTOPRISM_ADMIN_USER: "admin"
      PHOTOPRISM_ADMIN_PASSWORD: "changeme"   # ❗ replace in .env for real setup
      PHOTOPRISM_ORIGINALS_LIMIT: 5000
      PHOTOPRISM_HTTP_COMPRESSION: "gzip"
      PHOTOPRISM_LOG_LEVEL: "info"
      PHOTOPRISM_DISABLE_TLS: "true"
      PHOTOPRISM_SITE_TITLE: "Photo Archive"
      PHOTOPRISM_UPLOAD_NSFW: "true"
    volumes:
      - /var/docker/photoprism/storage:/photoprism/storage
      - /mnt/sldf/ImageLibrary:/photoprism/originals
    depends_on:
      - mariadb

  mariadb:
    image: mariadb:10.11
    container_name: photoprism-db
    restart: unless-stopped
    environment:
      MYSQL_ROOT_PASSWORD: "rootpass"    # ❗ move to .env
      MYSQL_DATABASE: "photoprism"
      MYSQL_USER: "photoprism"
      MYSQL_PASSWORD: "secret"           # ❗ move to .env
    volumes:
      - /var/docker/photoprism/db:/var/lib/mysql

🔒 Notes:

  • The sample shows placeholder passwords — store real ones in a .env file and reference them instead.
  • PhotoPrism disables TLS here (PHOTOPRISM_DISABLE_TLS=true) because HTTPS is handled by Nginx Proxy Manager.
  • Media library (/mnt/sldf/ImageLibrary) and PhotoPrism storage directory are separate for sanity and backups.

Qbittorrent + GlueTun – Private torrenting via VPN.

More about Qbittorrent + GlueTun
  • GlueTun handles the VPN tunnel (OpenVPN in this setup), and
  • Qbittorrent rides through it — no leaks, no “oops” moments.

Docker Compose:

version: '3.3'

services:
  gluetun:
    image: qmcgaw/gluetun
    container_name: qbittorrent-vpn
    cap_add:
      - NET_ADMIN
    devices:
      - /dev/net/tun
    volumes:
      - /var/docker/bittorrent/config/openvpn:/gluetun
    environment:
      - VPN_SERVICE_PROVIDER=custom
      - VPN_TYPE=openvpn
      - DOT=off
      - DNS=192.168.1.1
      - OPENVPN_CUSTOM_CONFIG=/gluetun/airvpn.ovpn
      - TZ=America/Chicago
      - FIREWALL_VPN_INPUT_PORTS=22112
    ports:
      - 8080:8080         # qBittorrent Web UI
      - 6881:6881         # BitTorrent TCP
      - 6881:6881/udp     # BitTorrent UDP
      - 22112:22112       # AirVPN port (TCP)
      - 22112:22112/udp   # Optional UDP trackers
    restart: unless-stopped

  qbittorrent:
    image: linuxserver/qbittorrent
    container_name: qbittorrent
    depends_on:
      - gluetun
    network_mode: "service:gluetun"
    environment:
      - PUID=1000
      - PGID=1000
      - WEBUI_PORT=8080
    volumes:
      - /var/docker/bittorrent/config:/config
      - /mnt/sldf/downloads:/downloads
      - /mnt/sldf/downloads/watch:/watch
    mem_limit: 512m      # RAM cap
    cpus: 0.75           # CPU limit (75% of one core)
    restart: unless-stopped

🔒 Notes:

  • VPN creds: Put your .ovpn file and any login credentials in /var/docker/bittorrent/config/openvpn — don’t hardcode them in the compose file.
  • No leaks: network_mode: service:gluetun forces all qBittorrent traffic through GlueTun — if VPN drops, qBittorrent is cut off.
  • Ports: 8080 is the Web UI (LAN only), 6881 handles BitTorrent, and 22112 is your forwarded VPN port.
  • Resource limits: CPU and RAM caps keep torrenting from hogging the Pi.

gir with mouth agape © Nickelodeon / Jhonen Vasquez

zram for efficient swap

One tweak that has paid dividends has been to create a zram swap with a lower priority swap file behind it. This actually compresses the swapfile in ram, sometimes even doubling the amount of data that can be stored in memory. It falls back to the ssd only when RAM and the zram swap are completely full. Pretty easy to set up:

🌀 ZRAM + Fallback Swapfile (Quick Setup)

# 1️⃣ Install and enable ZRAM (2 GB compressed swap)
sudo apt install zram-tools
echo -e "SIZE=2048\nALGO=zstd\nPRIORITY=100" | sudo tee /etc/default/zramswap
sudo systemctl enable --now zramswap

# 2️⃣ Add a 16 GB fallback swapfile on NVMe
sudo fallocate -l 16G /swapfile
sudo chmod 600 /swapfile
sudo mkswap /swapfile
sudo swapon --priority 10 /swapfile
echo '/swapfile none swap sw,pri=10 0 0' | sudo tee -a /etc/fstab

# 3️⃣ Verify
swapon --show

That’s it! Efficient swap file management on a memory constrained device.

Headless but with a Virtual Head Anyway

This was an exercise in masochism so I’m documenting my working setup here. I hope it helps someone else avoid the confusion and frustration I encountered.

These are the exact steps used to set up GIR’s “virtual head” — a full XFCE desktop available over VNC.

Detailed setup steps

Quick Start (LAN VNC with XFCE)

1️⃣ Install packages

sudo apt update
sudo apt install tigervnc-standalone-server xfce4 xfce4-goodies

2️⃣ Create ~/.vnc/xstartup

mkdir -p ~/.vnc
nano ~/.vnc/xstartup

Contents:

#!/bin/sh
unset SESSION_MANAGER
unset DBUS_SESSION_BUS_ADDRESS
export XKL_XMODMAP_DISABLE=1
export DISPLAY=:1
xrdb $HOME/.Xresources
exec startxfce4

Make executable:

chmod +x ~/.vnc/xstartup

3️⃣ Set a VNC password

vncpasswd

4️⃣ Create & enable systemd service

sudo nano /etc/systemd/system/vncserver@.service

Paste in:

[Unit]
Description=Start TigerVNC server at startup
After=syslog.target network.target

[Service]
Type=forking
User=grumble
Group=grumble
WorkingDirectory=/home/grumble
PIDFile=/home/grumble/.vnc/%H:%i.pid
ExecStartPre=-/usr/bin/tigervncserver -kill :%i > /dev/null 2>&1
ExecStart=/usr/bin/tigervncserver :%i -localhost no -geometry 1280x800 -depth 24
ExecStop=/usr/bin/tigervncserver -kill :%i

[Install]
WantedBy=multi-user.target

Enable and start:

sudo systemctl enable vncserver@1.service
sudo systemctl start vncserver@1.service

5️⃣ Connect from a VNC client to raspberrypi:1 (or the Pi’s LAN IP with :1).

🔒 Notes & Tips

  • -localhost no means anyone on your LAN can connect. For SSH tunnel–only access, change it to -localhost yes.
  • Logs & troubleshooting: check ~/.vnc/*.log if the service doesn’t start.
  • Passwords are set with vncpasswd and stored in ~/.vnc/passwd.

✅ Result: A persistent XFCE desktop on your Pi, ready whenever you connect.

SSH & Dotfiles Integration

I won’t go into all the gory details, but one of the biggest reasons GIR “just works” is the way SSH and Git are woven into everything.

All my machines — laptops, desktops, servers — share one dotfiles repo. That repo controls my shell prompt, aliases, functions, and toolchain. No matter which machine I’m on, I feel like I’m “at home.”

The other half of the puzzle is SSH. I keep a single, clean ~/.ssh/config (also tracked in Git) that knows how to reach every machine, and every machine has the right public keys installed so I can hop around without typing passwords.

Here’s an example (sanitized) of how I keep things neat:

# dotfiles/ssh/EXAMPLE.config
# Example SSH config — customize as needed and then rename from EXAMPLE.config to config

Host myserver
    HostName example.com
    User myuser
    IdentityFile ~/.ssh/id_ed25519

Host github.com
    HostName git.example.com
    User git
    IdentityFile ~/.ssh/id_github_ed25519
    IdentitiesOnly yes

How I Use GIR

So hopefully this post will not be as tedious to read as it was to write. I did put a lot of work into crafting this system, but how do I actually use it?

I keep some of the Docker services powered off normally and only activate them as needed. Others are always up and heavily used (like Gitea). Having my infrastructure services hosted in one place is a big win. The key to keeping it sane lies in how I use pihole and npm. For each service, I create an A record for servicename.darkstar.home that points to GIR’s IP address. I then create an Nginx Proxy Manager host rule that maps the friendly domain name to the service (whether on Docker or standalone). This keeps my namespace memorable and easy to link and avoids having to remember which port numbers of paths I used.

On each of my machines I have a folder of bookmarks to my services. With Dashy however, I have built a homepage that links to everything I have so just that link is enough to browse and reach the others.

It’s clean, friendly and works very well.

The final piece of the puzzle are scheduled backups.

Backups all the way down

GIR might be a little chaos gremlin, but I keep it on a short leash. Every night a systemd timer quietly kicks off a backup script that grabs all my Docker volumes, compresses them, and sweeps away the cruft.

Show backup script & systemd setup

Here’s the core script (lives at /usr/local/bin/docker-backup.sh):

#!/bin/bash
set -euo pipefail

BACKUP_DIR="/mnt/sldf/backup"
TIMESTAMP=$(date +"%Y-%m-%d_%H-%M-%S")
BACKUP_FILE="$BACKUP_DIR/docker_backup_$TIMESTAMP.tar.gz"
SOURCE_DIR="/var/docker"

# Create the backup (exclude the destination path)
tar -czf "$BACKUP_FILE" \
    --exclude="$BACKUP_FILE" \
    --exclude="$BACKUP_DIR" \
    "$SOURCE_DIR"

# Keep only the 3 most recent backups, delete older ones
ls -t "$BACKUP_DIR"/docker_backup_*.tar.gz | tail -n +4 | xargs -r rm -f

# Output completion message and notify Uptime Kuma
echo "Backup completed: $BACKUP_FILE"
curl -fsS --retry 3 \
  "http://status.darkstar.home/api/push/hm3iRuOyHT?status=up&msg=OK"

A systemd service runs the script:

# /etc/systemd/system/docker-backup.service
[Unit]
Description=Nightly Docker Backup

[Service]
Type=oneshot
ExecStart=/usr/local/bin/docker-backup.sh

And the systemd timer makes sure it happens every night:

# /etc/systemd/system/docker-backup.timer
[Unit]
Description=Run Docker Backup Every Night

[Timer]
OnCalendar=*-*-* 03:00:00
Persistent=true

[Install]
WantedBy=timers.target

Enable it once, and it just hums away:

sudo systemctl enable --now docker-backup.timer

Result: nightly backups, no drama, and only the three most recent snapshots kept — clean and lean, just the way I like it.

✅ Conclusion

GIR started life as a recovery project after my old server’s meltdown, but it’s turned into something better. The infrastructure it manages has been very reliable and despite its complexity, I know I have a robust server that turns my collection of machines and VMs into a cohesive rig. While I am careful not to break what works, I am not afraid to experiment and tweak it as needed.

That’s it. I definitely battled a lot of little problems so I hope this will help others avoid the same frustrations.

📬 Got a server with a weird name, a backup ritual, or a homelab hack you love?
Tell me about it: feedback@adminjitsu.com.

gir crazy laugh © Nickelodeon / Jhonen Vasquez
